Products
Car washer product

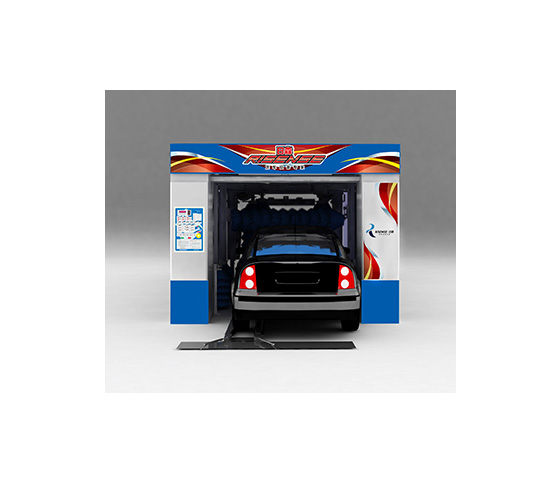

Tunnel car wash machine（CC-670）
Description:
Risense automatic tunnel car wash system is equipped with such advanced technologies as synchronous tire sensor to guide the car into the car wash machine and can shorten the space, the Japanese second-generation super-soft flannelette brush and foam brush as well as top profiling air-dry.
Features:
1) High pressure water pre-washing
2) Shampoo(foams) sprinkling and wax washing systems.
3) Three blowers dry the car body completely and precisely.
4) PLC control system & humanized operate pannel.
5) Intelligent avoidance system to wash all kinds of car types.
6) Electroplated conveyor equipped with the corrector device.
7) Hop-dip galvanized steel frame keep the whole machine antirust.
Equipment Parameter
Model | CC-670 |
Machine dimension | 8340x3800x3400mm |
Conveyor length | 9960mm |
Assembling range | 9960x3800mm |
Available size for car | 5300x2150x2270m |
Available car to wash | car/jeep/coach within 10 seats |
Main voltage | 380v 3phase 50HZ/60HZ |
Total power | 34.02kw |
Water supply | DN25mm water flow rate≥200L/min |
Air pressure | 0.75-0.9MPa Air flow rate≥0.6m3/min |
Water/electricity consumption | 150L/car 0.66kw/car |
Shampoo consumption | 8ml/car |
Water Wax consumption | 12ml/car |
Washing time | 1’12’’/car |
Car wash capacity | 50-60cars/hour |
Top brush | 1 set |
Big side brush | 4 set |
Small side brush | 2 set |
Wheel brush | / |
Dry brush | / |
Equipment Advantages
1. High pressure water-washing and chassis sprinkling.
2. Shampoo(foams) sprinkling and wax washing system.
3. 7 brushes with foam material and lifelong warranty.
4. Blowing system dry the car body completely and precisely.
5. PLC control system & humanized operate pannel.
6. Intelligent avoidance system to wash all kinds of car types.
7. Main technology and machine design from Japan.
8. Electroplated conveyor equipped with the tire corrector device.
9. Hop-dip galvanized steel frame keep the whole machine antirust.
10. Motors, electrical apparatus, pumps are all imported from abroad.
11. No less than 15 years'using time.
12. With one-site installation and operate training for free.
Equipment Parameter
| High efficient drying system | PLC control system made in Japan | Liquid automatic mixing and spraying system | Japan TSUBAKI frequency conversion motor（IP67) |
 |  |  |  |
| Waxing spraying system | Clothing/Fourth generation foam brush | Hot-dip galvanized steel frame | Anti-fire thin film |
 |  |  |  |
