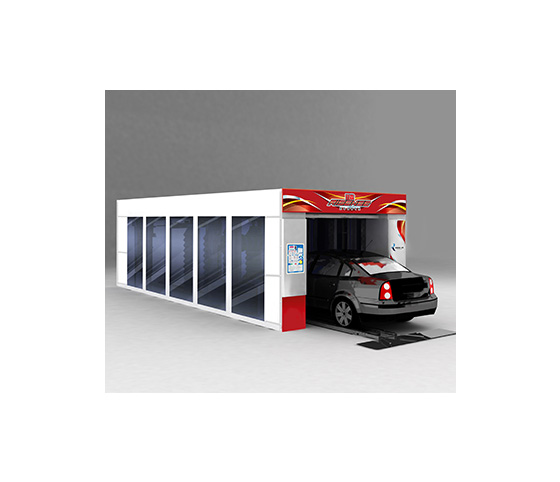

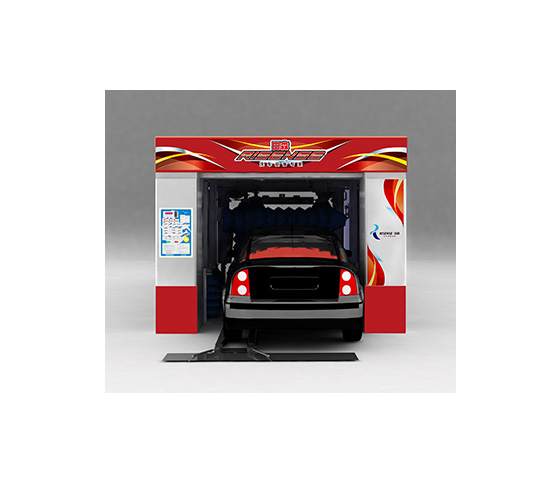

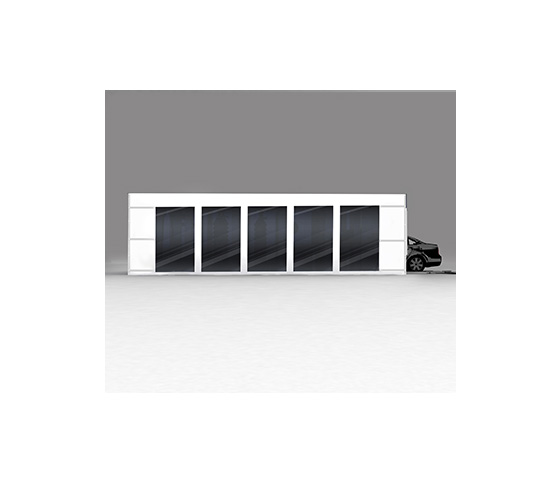

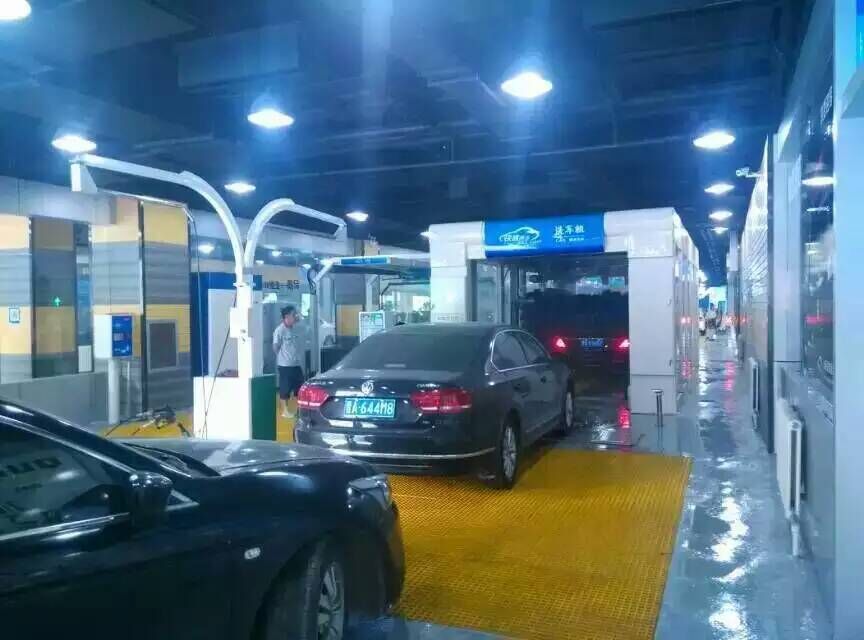

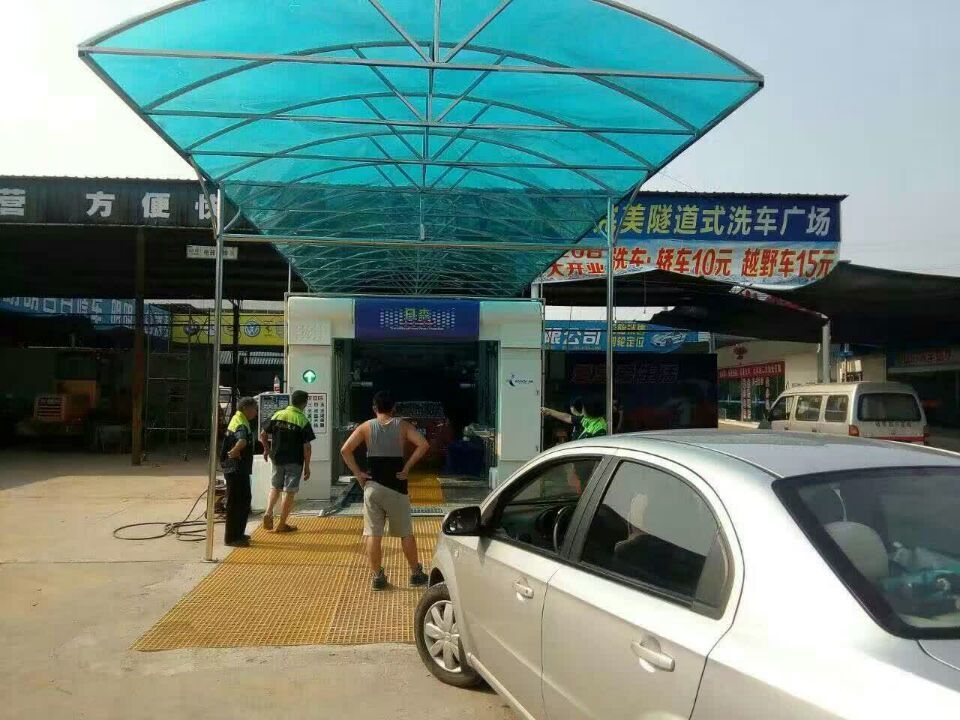

    Automatic tunnel car wash machine (CC-690)

    Description:

    Risense automatic tunnel car wash system is equipped with such advanced technologies as synchronous tire sensor to guide the car into the car wash machine and can shorten the space, the Japanese second-generation super-soft flannelette brush and foam brush as well as top profiling air-dry.

    Features:

    1)  High pressure water pre-washing

    2)  Shampoo(foams) sprinkling and wax washing systems.

    3)  Three blowers dry the car body completely and precisely.

    4)  PLC control system & humanized operate pannel.

    5)  Intelligent avoidance system to wash all kinds of car types.

    6)  Electroplated conveyor equipped with the corrector device.

    7) Hop-dip galvanized steel frame keep the whole machine antirust.


    Equipment Parameter

    Model

    CC-690

    Machine dimension

    9500x3800x3400mm

    Conveyor length

    11200mm

    Assembling range

    11200x3800mm

    Available size for car

    5300x2150x2270m

    Available car to wash

    car/jeep/coach within 10 seats

    Main voltage

    380v 3phase 50HZ/60HZ

    Total power

    37.02kw

    Water supply

    DN25mm water flow rate≥200L/min

    Air pressure

    0.75-0.9MPa Air flow rate≥0.6m3/min

    Water/electricity consumption

    150L/car  0.66kw/car

    Shampoo consumption

    8ml/car

    Water Wax consumption

    12ml/car

    Washing time

    1’12’’/car

    Car wash capacity

    50-60cars/hour

    Top brush

    1 set

    Big side brush

    4 set

    Small side brush

    4 set

    Wheel brush

    /

    Dry brush

    /


    Equipment Advantages

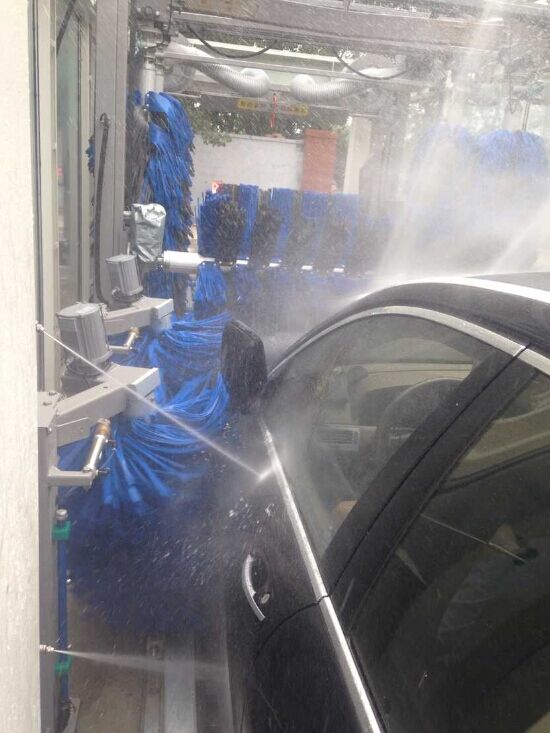

    1. High pressure water-washing and chassis sprinkling.

    2. Shampoo(foams) sprinkling and wax washing system.

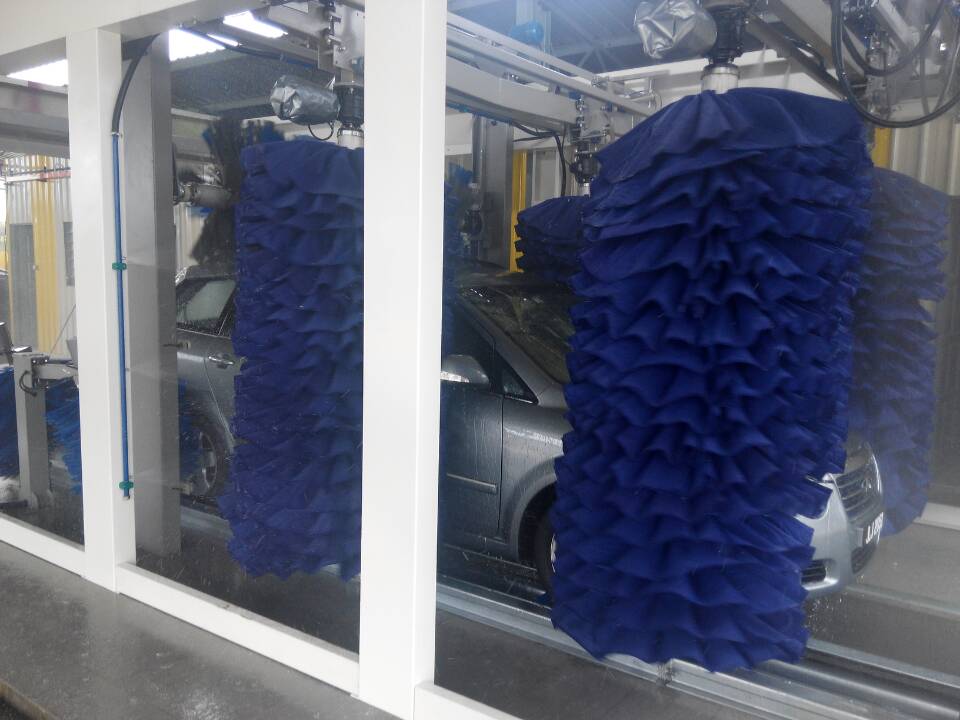

    3. 9 brushes with foam material and lifelong warranty.

    4. Blowing system dry the car body completely and precisely.

    5. PLC control system & humanized operate pannel.

    6. Intelligent avoidance system to wash all kinds of car types.

    7. Main technology and machine design from Japan.

    8. Electroplated conveyor equipped with the tire corrector device.

    9. Hop-dip galvanized steel frame keep the whole machine antirust.

    10. Motors, electrical apparatus, pumps are all imported from abroad.

    11. No less than 15 years'using time.

    12. With one-site installation and operate training for free.


    Equipment Parameter
    High efficient drying systemPLC control system made in JapanLiquid automatic mixing and spraying system

    Japan TSUBAKI frequency conversion motor(IP67)

    (IP67)
    Waxing spraying systemClothing/Fourth generation foam brushHot-dip galvanized steel fram

    Anti-fire thin film
